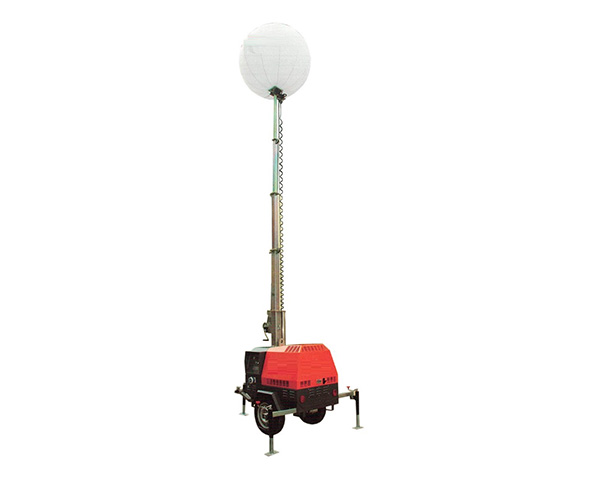

THUNDER Ballon Light Tower
| Type |
TB-3000 |
TB-1200 |
| DIMENSIONS |
Length (mm) |
2260 (7'5") |
| Width (mm) |
1050 (3'5") |
| Height (mm) |
2530 (8'4") |
| Full Extending Height (mm) |
7,5 (24'7") |
| Gross Weight (kg/lbs) |
460/1100 |
405/960 |
| ENGINE |
Engine |
KD440 (KOHLER) |
KD225 (KOHLER) |
| Rotational Speed (rpm) |
3000/3600 |
| Number of Cylinder |
1 |
| Engine Character |
4cycles, air-cooled diesel |
| Combustion System |
Direct Injection |
| Engine Aspiration |
Naturally Aspirated |
| Emission Level |
Regular |
| ALTERNATOR |
Standard Configuration |
SPARKS |
| Frequency (Hz) |
50/60 |
| Rating Voltage |
230/240-120VAC |
| Alternator Insulation |
Class H |
| Alternator Protection Grade |
IP 23 |
| MASS & LIGHTS |
Type of Light |
Regular Metal Halide |
| Light's Fixture |
Ballon with Metal Halide Bulbs |
| Luminous Flux |
Not Available |
| Number & Power of Lights (W) |
3 x 1000 |
3 x 400 |
| Number of Mast Section |
6 |
| Mast Extension |
Manually |
| Mass Rotation |
Not Available |
| TRAILER |
Trailer Suspension & Axle with Brakes |
Single Torsion Axle without Brake |
| Tow Bar |
A Style Tow Frame with Supporting Jack |
| Stabilizing Legs & Number |
2pcs Extendable Bar with Manually Retractable Jack |
| Wheel's Rim Size & Tires |
13" Rim with Regular Tires |
| Tow Adapter |
2" Ball Adapter |
| Tail Lights |
Tail Reflector |
| Max Towing Speed (km/H) |
100 (62mph) |
| ADDITIONAL FEATURES |
Fuel Tank Type |
Punch Forming Steel Sheet |
| Fuel Tank Capacity (L) |
38 |
38 |
| Operating Hours (hours) |
32 |
84 |
| Wires & Electric Components |
Regular |
| Generator Controller |
Key Starting |
| Max Againts Wind (m/s) |
10 (23mph) |
| Accoustic Pressure |
77db (A) at 7 meters away |
