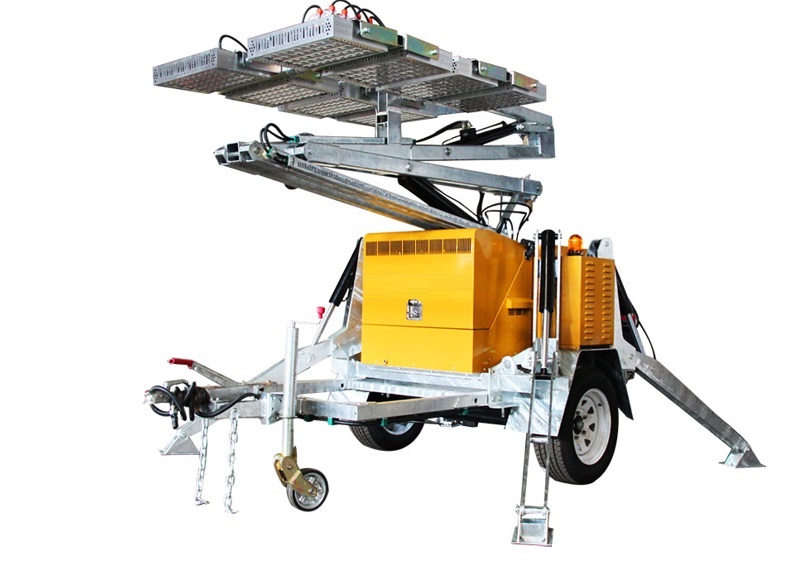

THUNDER SolarSun Panel Power and LED Lamp
| | Type | T8 | T4 |
| DIMENSIONS | Length (mm) | 3730 (12'3") |
| Width (mm) | 2820 (9'3") |
| Height (mm) | 2495 (8'2") |
| Full Extending Height (mm) | 9 (29'7") |
| Gross Weight (kg) | 1850/4034 | 1800/4000 |
| ENGINE | Engine | KD440 (KOHLER) |
| Rotational Speed (rpm) | 3000/3600 |
| Number of Cylinder | 1 |
| Engine Character | 4 cycles, air-cooled diesel |
| Combustion System | Direct Injection |
| Engine Aspiration | Naturally aspirated |
| Emission Level | Regular |
| ALTERNATOR | Standard Configuration | SP10MG (LINZ) |
| Frequency (Hz) | 50/60 |
| Rating Voltage (V, AC) | 230 (AC) |
| Alternator Insulation | Class H |
| Alternator Protection Grade | IP 23 |
| MASS & LIGHTS | Type of Lights | LED | Regular metal halide |
| Light's Fixtures | Rectangle | Rectangle (GEWISS) |
| Luminous Flux (LM/Light) | 39000 | 110000 |
| Number & Power (W) | 8 x 300 | 4 x 1000 |
| Number of Mass Section | 3 |
| Mass Lifting | Hydraulic |
| Mass Extension | Hydraulic |
| Mass Rotation | Hydraulic |
| Light Bar Tilt | 12VDC Electric Linear Actuator |
| TRAILER | Axle with Suspension & Axle Brake | SWT Standard leaf springs & single axle with mechanical drum brakes |
| Tow Bar | Retractable & adjustable supporting wheel tow bar |
| Stabilizing Legs & Number | 4pcs Hydraulic retractable legs |
| Wheel's Rim Size & Tires | 16" rim with off road tires |
| Tow Adapter | Tall light kit |
| Max Towing Speed (km/H) | 100 (62mph) |
| ADDITIONAL FEATURES | Electric Standard & Configuration | SWT Australia Electric Standard, Australia & Mining Configuration |
| Fuel Tank Type | Double Wall |
| Fuel Tank Capacity | 80 |
| Operating Hours | 88 | 53 |
| Hydraulic Components | Mining Standard Hose |
| Wires & Electric Component | IP 65 |
| Generator Starting Type or Controller | SUNIGHT-002 |
| Running Indicator of Generator | Rotating LED Light |
| Extinguisher | Only Supply the Mounting Bracket |
| Max Against Wind (m/s) | 22 (50mph) |
| Acoustic Pressure | 75db (A) at 7m (23') away |
